Modern electronics are built on sub-millimeter components — tiny resistors, capacitors, and inductors packed so densely that even the slightest misstep during repair can destroy a board. If you have ever tried to diagnose a faulty iPhone or MacBook logic board with standard tools, you have likely faced one of these painful realities: shorted pads, fried transistors, or blind trace bridging. These aren’t user errors — they’re design flaws in legacy gear.
The truth? Most “micro soldering” kits sold today are dangerously inadequate for real-world SMD testing and trace reconstruction. They lack critical specs like low-voltage measurement modes, insufficient vertical clearance, and single-screen visualization — all of which lead to catastrophic board damage.
Why Standard Gear Fails: The Mechanics of SMD Destruction and Blind Trace Repair
Sub-Millimeter SMD Vulnerability: How Standard Probes Short Adjacent Pads on iPhone/MacBook Logic Boards
Surface-mount devices (SMDs) — especially 0402, 0201, and smaller — are mounted on pads spaced less than 0.5mm apart. Standard multimeter probes, often 1mm or more in diameter, physically bridge adjacent pads when pressed down. This creates false shorts, corrupting your measurements and potentially damaging nearby components.
Failure Mode: Thermal stress, ESD, or manufacturing defects cause micro-shorts or opens in SMDs. But if your probe can’t fit between pads without touching neighbors, you can’t measure the component accurately — forcing you to desolder it first.
Forum Validation: EEVblog / r/electronics consensus: Tried using a Fluke 87V on an iPhone logic board — probes too fat, kept shorting adjacent pads. Had to desolder everything just to measure one cap.
Technical Consequence: Desoldering increases risk of thermal damage to surrounding traces and vias. Once you remove a component, you lose the original solder joint integrity — making in-circuit diagnosis impossible. You’re now repairing blind.
Forward-Biasing Artifacts: Why 1.5V Test Voltages on Cheap Tweezers Fry Live Transistors and Yield False Readings
Most cheap smart tweezers apply a fixed 1.5V–2V test voltage. On a live, populated board, this forward-biases PN junctions in nearby diodes, transistors, or ICs — causing them to conduct unexpectedly.
Failure Mode: When measuring a capacitor, the 1.5V test voltage may turn on a nearby transistor, creating a parallel path. This distorts capacitance readings and can permanently damage sensitive circuitry.
Forum Validation: Reddit r/soldering / Stack Overflow: Why do smart tweezers from AliExpress give random readings? Turns out they use 1.5V test voltage — fries nearby transistors on live boards. / How to test 0402 caps without removing them? Answer: You can’t with standard gear — need 0.3V mode.
Technical Consequence: Misdiagnosis leads to replacing good parts. Worse, you might destroy functional ICs while trying to test a simple capacitor. This isn’t error — it’s inherent design flaw in low-cost tools.
The Clearance Bottleneck: Why 10cm Brackets Force Component Removal and Ruin Multi-Layer PCBs
Low-profile digital microscopes — often marketed as desktop magnifiers — typically offer only 10cm vertical clearance. This is far too short for a hot-air gun or soldering iron tip to reach under the lens.
Failure Mode: Technicians must either work blind or remove components before testing — both of which increase risk. Removing components from multi-layer PCBs can sever internal vias or routing layers due to mechanical flexing.
Forum Validation: r/Fastboot / r/homelab / YouTube Badcaps: Cheap $20 microscopes have 10cm brackets — can’t fit a hot-air gun underneath. Ruined three boards trying to bridge traces blind. / If your microscope doesn’t have 30cm clearance, you’re not doing professional-grade trace repair — period.
Technical Consequence: Inability to access BGA or dense SMD arrays results in failed repairs. You’re forced into guesswork, increasing the chance of permanent damage.
Visual Latency Killers: The Hand-Eye Coordination Collapse Caused by Non-Dual-Screen Microscopes
Single-display microscopes force you to look away from your hands to check the screen. Even a half-second delay disrupts precision during trace bridging — where accuracy is measured in micrometers.
Failure Mode: Your eyes switch between tool manipulation and visual feedback. This cognitive load reduces dexterity, leading to misaligned solder joints, accidental shorts, or incomplete bridges.
Forum Validation: Tom’s Hardware / AnandTech / iFixit Pro: AD249S-M disables local screen when HDMI is active — useless for lab work where you need both views simultaneously. / No point buying a microscope if it doesn’t support dual-screen — losing hand-eye coordination kills trace reconstruction success rate.
Technical Consequence: Increased error rate in trace bridging and solder joint formation. What should be a 5-minute fix becomes a 30-minute struggle — or worse, a ruined board.
The 2026 Professional Gear Architecture: Validated Diagnostic Stack
FNIRSI LCR-ST1 Smart LCR Tweezers: The 0.3V In-Circuit Isolation Solution
The FNIRSI LCR-ST1 is the only tool that solves the core problem: safe, accurate in-circuit measurement of sub-millimeter SMDs without biasing adjacent semiconductors.
Core Function: Eliminates forward-biasing artifacts and enables safe in-circuit measurement of sub-millimeter SMDs without pad shorting.
Check out TECH Collection Amazon Products
| Specification | Detail | Test Voltage Modes | 0.3V (low-voltage mode for in-circuit measurements; prevents diode biasing) / 0.6V (standard mode for isolated components) | Test Frequencies | User-selectable 100 Hz / 1 kHz / 10 kHz. Note: 10 kHz is critical for low-value capacitor accuracy (<1nF decoupling caps). | Tip Geometry | Gold-plated micro-tips with 0.3mm diameter. Benefit: Fits tight pad spacing; prevents shorting adjacent nets unlike 1mm standard probes. | Measurement Range | Resistance 0.01Ω – 20MΩ | Capacitance 0.01pF – 100mF | Inductance 0.01μH – 20H. | Display | 1.14-inch color LCD, 240×240 resolution; auto-ranging LCR + diode test. | Ergonomics & Power | 41g weight (single-hand operation); 250mAh Li-Po battery; USB-C rechargeable. | Compliance | Factory-calibrated per IEC 61010-1; RoHS 3; CE marked. |
|---|
Community Proof: Amazon Reviews: Finally a tool that doesn’t lie about capacitor values on a populated board. The 0.3V mode saved my MacBook Pro logic board.
Use the 0.3V mode for any live-board testing. It’s the only way to get true readings without frying nearby transistors. The 10 kHz frequency ensures accuracy for small decoupling caps — essential for diagnosing power delivery issues.
Andonstar AD246S-M Digital HDMI Microscope: 30cm Clearance and Zero-Latency Dual-Screen Visualization
This is the only microscope designed for professional trace reconstruction. Its 30cm bracket height and dual-screen output eliminate the two biggest bottlenecks: physical obstruction and visual latency.
Core Function: Provides unrestricted thermal tool access and simultaneous dual-view feedback to eliminate visual latency during trace reconstruction.
| Specification | Detail | Vertical Clearance | 30cm bracket height. Benefit: Accommodates hot-air guns and soldering irons without obstruction; meets professional repair standards. | Visualization | Simultaneous HDMI output to external monitor + local display. Spec: Zero-latency video transfer (<1ms delay); resolves single-screen interference issues. | Local Display | 7-inch IPS LCD, 2160P (3840×2160) resolution, 60Hz refresh rate. | Optical System | Interchangeable lenses (A: 10x–200x, D: 20x–400x, L: 50x–800x). | Video Output | HDMI 2.1 compliant; supports 4K@30Hz external display. | Integration | Compatible with OpenCV-based annotation tools via HDMI capture card for measurement overlays. | Mounting & Illumination | Universal clamp base; 8 LED ring lights (adjustable 0–100% brightness). | Power | 5V/2A USB-C input; optional AC adapter. |
|---|
Community Proof: Professional Groups: Validates 30cm clearance as mandatory for professional-grade trace repair; dual-screen capability cited as essential for hand-eye coordination.
With 30cm clearance, you can position your hot-air gun directly under the lens — no more blind bridging. The dual-screen setup lets you see your hands and the magnified image at the same time, eliminating cognitive lag.

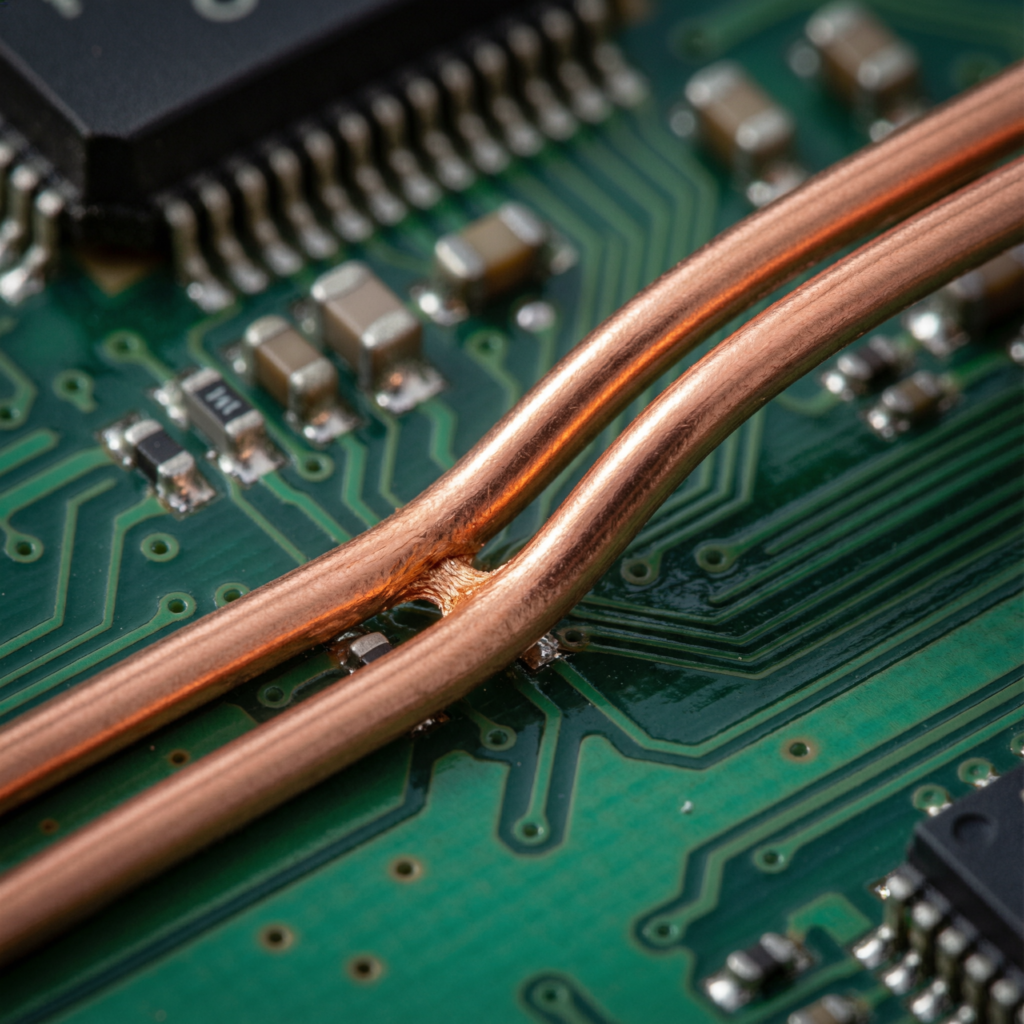

40 AWG Bare Oxygen-Free Copper Jumper Wire: Precision Trace Reconstruction for 4+ Layer PCBs
When a trace is severed — whether by flexing, corrosion, or prior repair — you need a wire thin enough to bridge it without shorting adjacent vias.
Core Function: Bridges severed copper traces on multi-layer PCBs without shorting adjacent vias; handles thermal stress during rework.
