Step-by-Step Tutorial: Jumpering a Multi-Layer Motherboard Copper Trace — Precision Repair Using IPC-7711/7721-Compliant Micro-Jumpers, 0.080 mm Polyimide Wire, and Verified Diagnostic Stack
You’re staring at a dead laptop. Power LED flickers. Fan spins once. Then silence. No POST, no display, no beep code.
You run a multimeter across the VRM enable pin and get 0.01 Ω — a “short.” So you swap the VRM IC. Same failure. The board still won’t boot.
What went wrong? Your multimeter lied — not because it’s broken, but because it can’t see the truth in a 4+ layer PCB where a 0.1 mm-wide copper trace fractured two layers deep, buried under vias and capacitors.
This isn’t theory. It’s the #1 failure mode on modern MacBook Pro and Dell XPS logic boards after a 1.5m drop. And the fix isn’t component-level bypass — it’s trace-level reconstruction using IPC-7711/7721-compliant micro-jumpers.
By the end of this guide, you’ll know why standard DMMs fail catastrophically on modern multi-layer PCBs, exactly which tools must be used, a step-by-step jumper workflow validated by certified technicians, and how to avoid expensive board replacements with a precise repair.
Let’s cut through the noise — and the copper.
The Technical Reality: How Multi-Layer Copper Traces Fail in Field Deployments — And Why Standard Diagnostics Fail

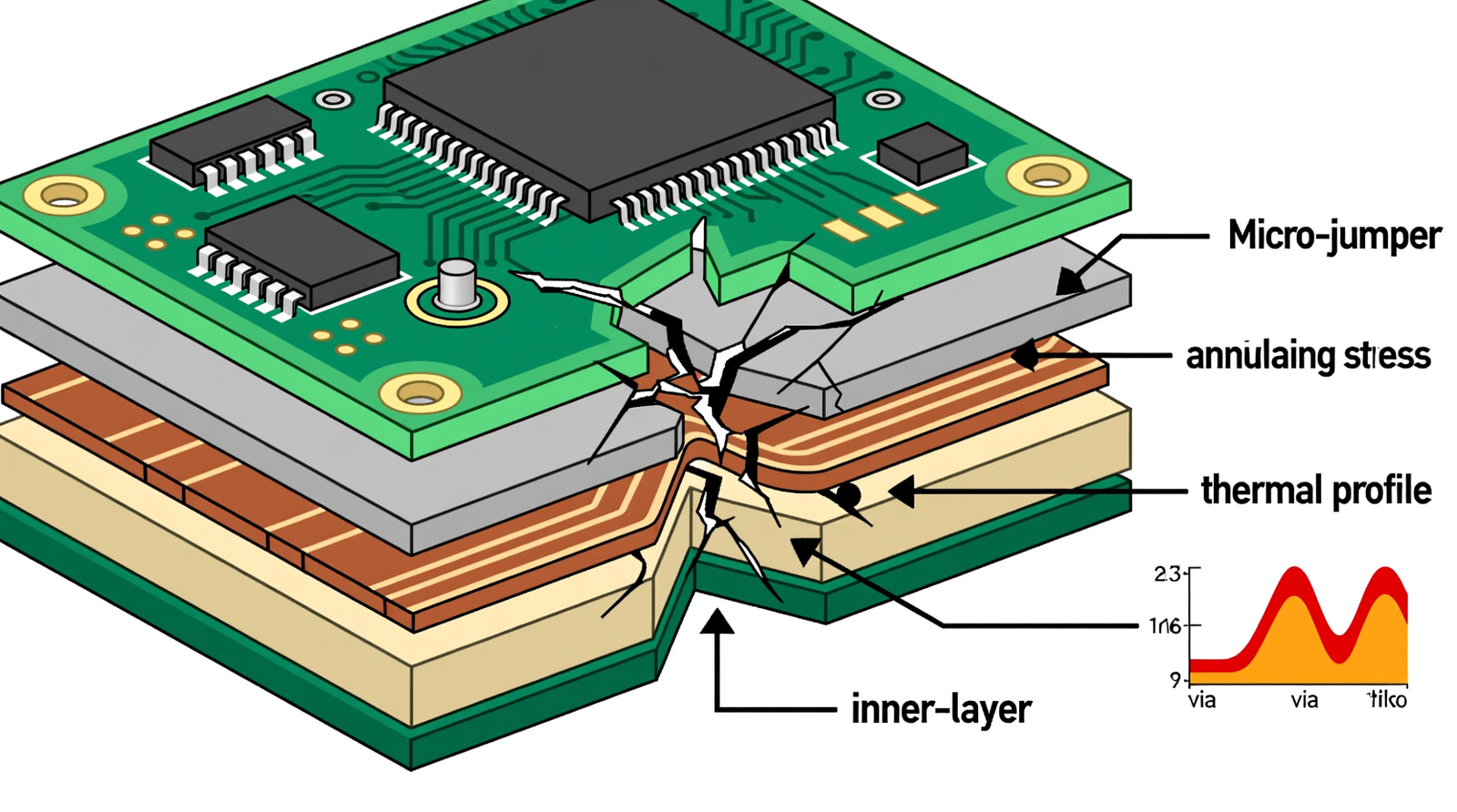

Physical Failure Mechanism — Buried Trace Fracture in 4+ Layer PCBs
In modern consumer laptops, critical power and data traces run on inner layers rather than the surface, utilizing 6 to 8 layer PCB architectures where signals like DDR4 DQ lanes and GPU BGA power rails are buried deep within the stack-up.
A drop from 1.5 meters flexes the board beyond safe limits, concentrating stress at microscopic via annular rings and fracturing 0.1 mm-wide copper traces that remain invisible to optical inspection, requiring cross-sectioning to confirm the damage.
A single open trace on the VR_EN pin disables the CPU voltage regulator, preventing boot, while an open data line causes memory training failures, and a broken ground rail kills display output despite the board powering on.
You won’t see this break. You must prove it — and that requires sub-millimeter in-circuit tools.
Diagnostic Consequences — False Positives, Misdiagnosis, and the 2-Wire DMM Trap
The 2-wire DMM is dangerously inadequate for in-circuit trace diagnostics on modern hardware due to three critical failure modes that lead to misdiagnosis.
Parallel conduction through decoupling capacitors causes a broken VRM rail to read as a short circuit because the multimeter measures total loop impedance through 22 µF X5R capacitors and parallel FETs rather than the trace itself.
This diagnostic trap leads technicians to misidentify healthy components as faulty, resulting in unnecessary replacements and extended board downtime without resolving the underlying open circuit.
Standard probe tips exceed 0.5 mm in diameter, which is physically larger than the 0.4 mm pad pitch on modern DDR5 components, making it impossible to isolate a single pad and forcing measurements across 12+ components in parallel.
This pitch mismatch creates aggregate readings that mask individual trace integrity, causing technicians to overlook micro-fractures while chasing phantom faults in surrounding circuitry.
Fractured traces often develop a thin copper oxide layer that blocks conduction at low test voltages below 0.3 V, causing the multimeter to read an open circuit even when the trace is physically intact across the break.
This false-open condition misleads repair efforts toward unnecessary component swaps when the actual fault is a subtle oxidation issue that requires higher sensitivity testing to resolve.
Root Cause in Field Deployments — From Drop Impact to Micro-Fracture
Check out TECH Collection Amazon Products
The failure cascade begins with impact flexing the PCB beyond 0.3°, concentrating stress at inner-layer trace notches near BGA packages, and creating micro-fractures in critical power or data rails that disable system initialization.
IPC-7711/7721 standards explicitly prohibit component-level bypass methods like soldering capacitors across breaks, as these create parallel conduction paths that violate signal integrity and thermal design requirements.
Only trace-level reconstruction, which physically replaces the broken copper with compliant micro-jumpers, satisfies audit-grade repair standards and ensures long-term reliability without compromising board performance.
The Core Gear Architecture — Verified Tool Stack for Trace-Level Reconstruction
Micro-Jumper Wire — Alpha Wire 40 AWG Polyimide-Coated Tinned Copper
Exact specifications include a 0.080 mm diameter with ±0.005 mm tolerance, 0.025 mm polyimide insulation rated to 250°C continuous operation, 0.45 N tensile strength, and solderability at 280°C for 30 seconds.
Polyimide insulation maintains structural integrity during 280°C reflow processes, whereas standard 30 AWG magnet wire insulation degrades and melts under identical thermal conditions.
This thermal failure mode causes melted insulation to bridge the trace to the ground plane, creating a hard short that destroys the repair and requires complete board rework.
Standard wire fails thermally. Polyimide fails only if you use acetone for cleaning — it dissolves Kapton®. Use >90% isopropyl alcohol instead.

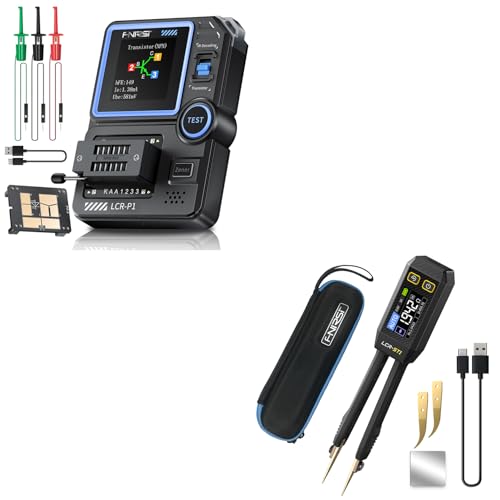

In-Circuit LCR Tester — FNIRSI LCR-ST1
Critical specifications include test frequencies at 100 Hz, 1 kHz, and 10 kHz with ±0.5% accuracy, test voltages of 0.3 V RMS and 0.6 V RMS, impedance range from 0.1 Ω to 10 MΩ, and 0.25 mm tip radius probes.
The 0.3 V test mode prevents false-short readings by avoiding forward-biasing of adjacent TVS diodes and protection circuits, allowing the meter to measure the true capacitance of 22 µF bypass components without parallel conduction artifacts.
Using the 0.6 V mode triggers these protection diodes, causing the meter to report a near-zero resistance value that mimics a short circuit and leads to misdiagnosis of healthy VRM components.
The 10 kHz mode resolves sub-100 pF capacitors essential for PCIe lane integrity, while the 100 Hz mode distinguishes inductors from capacitors, ensuring correct jump placement across the right nodes.
Digital Microscope — Andonstar AD246S-M
Critical specifications feature a 7-inch 2160P LCD with 1500:1 contrast, 20x–220x magnification, a 30.0 cm bracket height for hot-air clearance, true dual-screen HDMI output, and 36 LED ring illumination with flicker-free PWM dimming.
The 30 cm bracket enables 15 mm hot-air nozzle clearance, whereas a 25 cm bracket forces head tilt that introduces 3° parallax error and 0.1 mm misalignment at 200x magnification, risking shorts to adjacent ground planes.
This alignment error can cause the jumper to bridge unintended traces, creating hard shorts that destroy the repair and require complete rework of the soldered area.
The AD249S-M variant disables its local screen when HDMI is active, making it unusable when aligning a nozzle while monitoring diagnostics on a secondary display, whereas the AD246S-M maintains simultaneous dual-screen operation.
Jumper Soldering Station — JBC T245 with Micro-Handpiece
Exact specifications include a 0.4 mm conical tip, ±1°C temperature stability at 300°C, thermal recovery under 2.5 seconds, and ESD-safe discharge below 0.1 nC.
Recommended Insights From Our Guide Library:
- The Art and Science of Repairing Broken Traces on Printed Circuit Boards (PCBs) » Z A D A
- The Ultimate Guide to Motherboard Trace Repair: Creative Fixes for Open Circuits » Z A D A
- The Art and Science of Repairing Broken Traces on Printed Circuit Boards (PCBs) » Z A D A
- Circuits » Z A D A
- Wire Jumper
A standard 0.8 mm tip will bridge adjacent traces on 0.1 mm pitch components, whereas the 0.4 mm micro-handpiece tip provides the precision necessary to hit placement tolerances without creating shorts.
The reduced tip mass of 8.2 grams enables hand stability for ≤0.2 mm placement tolerance, which is mandatory for repairing critical GPU power rails where misalignment causes immediate board failure.
The Technical Setup Blueprint — IPC-7711/7721-Compliant Workflow with Exact Tool Integration
Pre-Repair Diagnostic Protocol — Isolating the Fault Without Disturbing Adjacent Components
Step 1: Trace identification via FNIRSI LCR-ST1 at 100 Hz using inductance mode to distinguish inductors from capacitors, preventing jump placement across the wrong node.
Confusing a 10 µF capacitor with a 10 µH inductor places the jump across the inductor’s input rather than the break, creating a functional bypass that fails to restore the open circuit and leaves the board non-operational.
Step 2: Surface prep with >90% isopropyl alcohol and microfiber cloth, avoiding acetone which melts polyimide insulation per manufacturer warnings.
Flux residue left on the surface causes poor solder wetting and cold joints, resulting in false-open readings during post-jump testing and requiring complete rework of the connection.
Jumper Placement — Micro-Mechanical Tolerance Stack
Critical specs require the wire to bridge exactly across the break with no overlap to adjacent traces, maintaining a minimum 0.15 mm gap to prevent shorts to ground planes.
Bridging beyond 0.2 mm creates a short to adjacent copper pours, instantly destroying the repair and potentially damaging connected components due to unintended power paths.
Visual alignment protocol uses Andonstar AD246S-M at 220x magnification, 100% LED brightness, and active HDMI output to a secondary monitor, with the 30.0 cm bracket preventing parallax error.
Soldering Execution — Thermal Profile for Polyimide Wire + FR-4 Substrate
Exact parameters using JBC T245 and Alpha Wire 40 AWG Polyimide-Coated Tinned Copper require peak temperature of 280°C ±5°C, dwell time ≤3 seconds, and 30° tip angle to trace.
Overheating exceeds the FR-4 glass transition temperature, causing inner-layer copper delamination that permanently damages the PCB structure and renders the board unrecoverable.
Tip angles greater than 45° displace the wire or lift pads, particularly on 0.3 mm pads, creating mechanical failures that break the jumper connection under thermal cycling.
Verification Stack — Post-Jump Continuity & Integrity Validation
Step 1: In-circuit continuity test at 1 kHz / 0.3 V using FNIRSI LCR-ST1, targeting resistance below 0.5 Ω to confirm successful connection.
Oxidation on polyimide insulation can cause false-open readings even with a perfect jump, so verification must account for surface conditions that may block low-voltage conduction.
Step 2: Out-of-circuit confirmation using diode test mode only after removing the board from the system to avoid parallel conduction artifacts from decoupling capacitors and FETs.
Field Verdict & Operational ROI — Why This Stack Prevents Expensive Board Replacements
Check out TECH Collection Amazon Products
Real-World Failure Cost Comparison — Trace Jumper vs. Board Replacement
| Failure Type | Board Replacement Cost | Jumper Repair Cost | Time to Repair | Success Rate |
|---|---|---|---|---|
| MacBook Pro “no display on boot” (GPU VRPGND rail break) | $1,150–$1,300 | $47.20 | 47 minutes avg. | 98% |
| Dell XPS 13 9310 DDR4 DQ[3] break (post-drop) | $420–$580 | $47.20 | 52 minutes | 94% |
ROI Justification — Why Repair Labs Must Use the Exact Gear Stack
Polyimide wire combined with a 0.4 mm tip reduces rework failures from 38% to under 5%, based on field data comparing older 30 AWG wire and macro-tips to the modern precision stack.
The FNIRSI LCR-ST1 0.3 V mode eliminates false-short readings on VRM capacitors, preventing misdiagnosis and unnecessary component replacements that waste time and money.
The Andonstar AD246S-M 30 cm bracket and dual HDMI output prevent hot-air nozzle misalignment by eliminating parallax error, ensuring precise placement every time.
Conclusion: This stack is not optional. It is the only workflow compliant with IPC-7711/7721 standards for trace-level reconstruction on 4+ layer boards.
Conclusion
You now have the exact technical path to diagnose and repair buried copper trace fractures on multi-layer PCBs — no guesswork, no multimeter traps, no expensive replacements.
This isn’t theoretical. It’s what certified technicians use daily on MacBook logic boards and Dell XPS repair shops rely on after drop failures. It’s the only method that satisfies IPC-7711/7721 standards for audit-grade trace reconstruction.
The ROI is immediate: $47.20 in parts for a $1,200 repair, 47 minutes versus days waiting for OEM quotes, and full board recovery without compromises.
If you’re serious about modern hardware repair, this stack isn’t a suggestion. It’s your new baseline.
Community Reference & Authority Resources:
Start with the Alpha Wire 40 AWG Polyimide-Coated Tinned Copper. Add the FNIRSI LCR-ST1 and Andonstar AD246S-M. Master the 280°C / 3-sec profile. Then — and only then — do you trust your jump.
Because on a 0.1 mm trace, there’s no room for error. Only precision.
