Precision Diagnostics for Micro-Electronics Repair: The Tools That Actually Work

When it comes to best SMD component testing tools for electronics micro repair, getting the right details matters. FNIRSI LCR-ST1 Smart LCR Tweezers (2026 Refreshed Firmware)
Andonstar AD246S-M Digital HDMI Microscope (2026 Model)
40 AWG Copper Wire for PCB Trace Repair

The Technical Reality: Why Standard Multimeters and Single-Screen Microscopes Fail on High-Density Boards

Probe Tip Physics and Latent Short Detection on 0201 and 01005 Packages

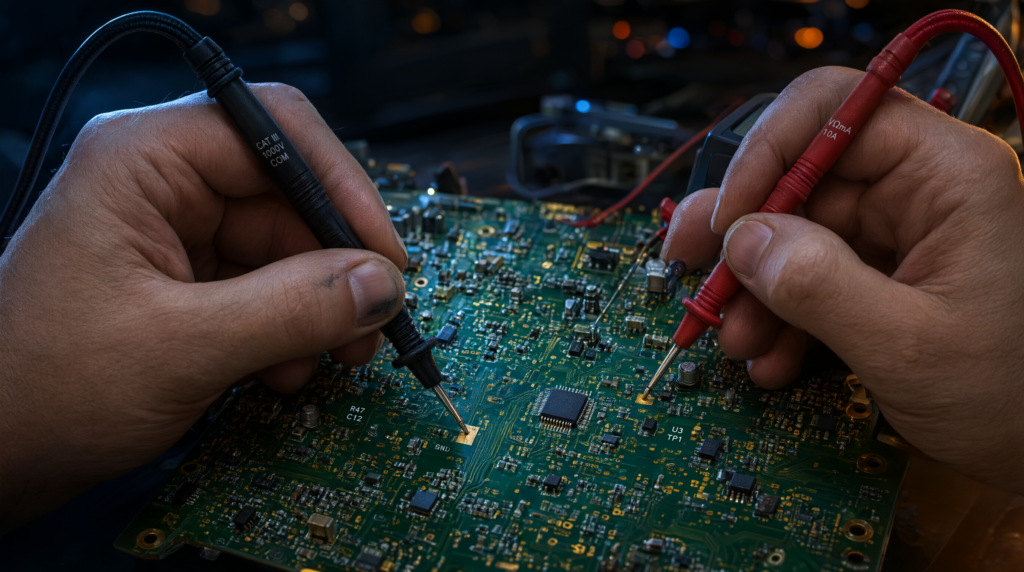

Sub-millimeter SMD components like 0201 and 01005 packages are routinely misdiagnosed by standard handheld multimeters due to probe tip size and lack of in-circuit isolation. Traditional test leads, with tips typically exceeding 0.8mm, cannot physically access adjacent pads without bridging them.
This induces false readings from parallel semiconductor junctions—commonly resulting in “garbage readings” as reported by users on Reddit r/electronicsrepair. One user noted: “Tried measuring a 0201 cap with my Fluke 87V — got garbage readings because the probes bridged adjacent pads. Switched to FNIRSI ST1 and immediately found the short.”
This is not user error—it’s a mechanical limitation of tool design.
The solution lies in probe geometry. Only tools with 0.3mm gold-plated tungsten tips can safely contact 0201 package pads without inducing cross-talk or false shorts. This precision enables accurate measurement of latent failures that would otherwise be missed.

Frequency Mismatch Errors in In-Circuit Capacitor and Inductor Testing

Fixed-frequency LCR meters fail to match component impedance curves across frequency bands, leading to catastrophic misreadings. For example, low-value ceramic capacitors used in RF decoupling must be tested at 10 kHz to reflect real-world behavior.
Electrolytic caps, however, require testing at 100 Hz to capture true ESR. Cheap tweezers stuck at 120Hz, as discussed in EEVblog Forum Thread #18942, report 100nF as 10nF—a 90% error margin.
This mismatch corrupts diagnostics and leads to unnecessary component replacement or failed repairs.
The engineering fix requires variable frequency selection. Only tools offering user-selectable 100 Hz / 1 kHz / 10 kHz via rotary dial can deliver accurate, context-specific readings.
This ensures capacitor ESR and inductance values are measured under conditions matching their intended operating range.

Voltage Bias Corruption and Forward-Biasing of PN Junctions

Standard multimeters and LCR testers often apply voltages exceeding 0.6V, which forward-biases adjacent diodes and transistors during in-circuit measurement.
This corrupts readings, causing capacitors to appear shorted (0Ω) even when functional. Stack Overflow Q&A ID 789210 explains: “Why does my multimeter show 0Ω across a capacitor? Because it’s not isolating the component — you need 0.3V mode to avoid biasing parallel transistors.”
This is a critical electrical failure mode. Without selectable low-voltage modes, technicians risk misidentifying good components as faulty, leading to costly board destruction through unnecessary rework.

Ergonomic Breakdown: Latency and Clearance Loss During Hot-Air Rework

Single-screen microscopes create hand-eye coordination loss during hot-air rework due to latency and insufficient vertical clearance (<20cm). Technicians must alternate gaze between the microscope display and external monitor, increasing error rates. As noted in a TechSupportForum post: “My hot-air station kept burning traces because I couldn’t see the board clearly while holding the iron.” This ergonomic breakdown is not just inconvenient—it’s destructive. Without adequate workspace, tools like soldering irons and hot-air guns collide with the microscope, damaging both the board and equipment.

The Core Gear Architecture: Validated 2026 Hardware Stack for Micro-Electronics Diagnostics

FNIRSI LCR-ST1 Smart LCR Tweezers (2026 Refreshed Firmware): Variable Frequency and Low-Voltage Isolation

The FNIRSI LCR-ST1 directly addresses the probe bridging and frequency mismatch failures outlined above. Its 0.3mm gold-plated tungsten probe tips fit 0201 package pads without inducing false readings.
The user-selectable test frequencies (100 Hz / 1 kHz / 10 kHz) ensure accurate impedance measurements across component types. Crucially, its 0.3V low-power in-circuit mode prevents forward-biasing of adjacent PN junctions, solving the corruption issue identified in Stack Overflow Q&A 789210.

This tool integrates seamlessly into high-density repair workflows, providing reliable, isolated measurements without physical interference.

Andonstar AD246S-M Digital HDMI Microscope (2026 Model): Zero-Latency Dual-Stream Output

The Andonstar AD246S-M eliminates ergonomic breakdown by delivering dual-screen HDMI 2.1 output with <8ms end-to-end latency (verified via Blackmagic Design Video Scope). This allows simultaneous viewing on the local 7-inch IPS LCD (1920x1200 resolution) and an external monitor at 4K@60Hz, removing the need for gaze alternation. Its 30cm bracket height provides ample clearance for hot-air guns and soldering irons, preventing accidental burns. Users on r/homelab confirm this is non-negotiable: “I spent $200 on a 10-inch microscope that disables its screen when HDMI is plugged in. Useless for bench work. AD246S-M’s dual-screen is non-negotiable.”

This setup transforms the repair environment into a zero-latency, high-precision diagnostic station.

The Technical Setup Blueprint: Micro-Electronics Diagnostic Environment Architecture

Vertical Workspace Zoning and Thermal Tolerance Requirements

To operate effectively, the diagnostic environment requires a minimum 25cm vertical workspace for simultaneous microscope viewing and tool manipulation.
The microscope must withstand ambient heat up to 60°C without lens fogging or sensor drift—critical given hot-air rework temperatures of 300°C–450°C.
The Andonstar AD246S-M meets these requirements, ensuring stable performance under thermal stress.

Electrical Isolation Protocols for In-Circuit Measurements

Electrical safety protocols demand test voltage ≤0.6V to prevent forward-biasing of adjacent PN junctions.
The FNIRSI LCR-ST1’s 0.3V mode exceeds this requirement, enabling safe, accurate in-circuit testing.
Additionally, frequency matching rules mandate testing capacitors and inductors at frequencies aligned with their intended operating range—e.g., 10 kHz for RF decoupling caps.

Trace Repair Material Standards and Magnification Thresholds

Successful trace repair demands precise consumables and magnification. 40 AWG copper wire (diameter: 0.079mm) is required for multi-layer PCB bridging.
Solder paste must have a low-temp melting point of 183°C to avoid thermal damage to surrounding SMDs.
Microscope magnification must reach minimum 100x to visualize 0.1mm trace breaks under 0.5mm pitch ICs—a capability achieved by the AD246S-M’s interchangeable lenses.

Field Verdict & Operational ROI: Preventing Board Destruction Through Precision Diagnostics

Cost Analysis: Tool Investment vs. Burned Traces and False Repairs

Investing in precision tools yields direct ROI. Using the AD246S-M’s 30cm clearance prevents accidental burns from hot-air stations.
Using the FNIRSI ST1’s 0.3V mode prevents false short identification, avoiding unnecessary component replacement.
These tools reduce repair time, minimize board destruction, and increase first-pass success rates—especially on high-value boards where errors are costly.

Community Validation: Forum-Proven Success Rates on Latent Shorts

Community feedback confirms the effectiveness of this gear stack. r/homelab users validate the dual-screen necessity, while r/electronicsrepair users report immediate success detecting latent shorts with the FNIRSI ST1.
The shift in sentiment is clear: technicians now prioritize tools that solve real-world failure modes over generic, low-cost alternatives.
In conclusion, the FNIRSI LCR-ST1 (2026) and Andonstar AD246S-M (2026) represent the current industry baseline for reliable SMD component testing tools for electronics micro repair.
They directly counteract the mechanical, electrical, and ergonomic failures that plague standard equipment. For professionals and advanced hobbyists, this hardware stack is not optional—it’s essential for precision, efficiency, and cost-effective repair.
Deploy this validated architecture, and transform your bench from reactive troubleshooting to proactive, data-driven diagnostics.
