Is Assembly Faster Than C for Embedded Systems? The ESP32-S3 Microcontroller Benchmark Reality Check
Most C vs. assembly microcontroller benchmarks are methodologically broken before the first line of code runs. If you have ever watched a forum thread declare “assembly smoked C” because a loop ran faster in a single `millis()` measurement, you have already seen the failure mode in action.
This guide cuts straight to the real question: is assembly faster than C for embedded systems microcontrollers benchmark work, and how do you measure it correctly on the ESP32-S3?
You will learn why `millis()` and `micros()` are invalid timebases, why modern GCC at `-O3` with LTO usually beats hand-written Xtensa assembly, how to lock down the ESP32-S3-WROOM-1 for deterministic testing, and which hardware stack removes the ambiguity entirely.
1. The Technical Reality / The Failure Point
1.1 Invalid Benchmark Construction
The most common mistake in C vs. assembly speed tests is using `millis()`, `micros()`, or software delay loops as the timebase. These functions are software abstractions layered on top of hardware timers, and they carry interrupt-service-routine jitter, scheduler overhead, and function-call latency.
That means your measurement is not instruction-level performance. It is framework latency wearing a stopwatch costume. The result is a false conclusion that C is “slower,” when the real bottleneck is the timer you chose.
Use the 64-bit hardware `timer_group` on the ESP32-S3 instead. It reads directly from the CPU clock domain and removes the software layers that corrupt your numbers.
1.2 Compiler-Optimization Mismatch
Hand-written assembly is too often compared against unoptimized C compiled with `-O0`, or against Arduino framework calls like `digitalWrite()`, `analogRead()`, and `delay()`. That is not a language comparison. It is a comparison between hand-tuned machine code and deliberately unoptimized, abstraction-heavy C.
Modern GCC at `-O2`, `-O3`, `-Os`, and `-flto` exploits instruction scheduling, register allocation, and whole-program optimization across translation units.
The compiler can see data flows and call graphs that a human assembly writer cannot hold in working memory, causing naive assembly to lose because the compiler maintains a broader view of the program.
If you want a fair fight, compile your C with `-O3 -flto` and then compare cycle counts from the hardware timer.
1.3 Environmental Non-Determinism on the ESP32-S3
The ESP32-S3 is a dual-core Xtensa LX7 running at up to 240 MHz, but it is not a clean room.
FreeRTOS task switching, Wi-Fi and Bluetooth stack activity, dynamic frequency scaling (DFS), and cache misses all inject timing variance.
A single-run benchmark on this platform is statistically meaningless. You must lock the CPU frequency, isolate the test to one core, disable interrupts or account for them, and repeat the measurement many times. Anything less is noise.
1.4 Human Assembly Pitfalls on Xtensa
Writing Xtensa assembly by hand introduces risks that the compiler avoids. Pipeline stalls, load-use delays, unaligned accesses, and branch penalties can all eat the cycles you thought you were saving.
Inline assembly through GCC extended `asm` also requires correct clobber lists and input/output constraints. Miss a clobber, and the compiler silently generates wrong code. Miss a cross-function optimization, and you lose to `-flto` anyway.
Even an experienced assembly programmer usually loses to the compiler on non-trivial code, because the compiler can optimize across the entire program.
1.5 Maintainability & Portability Failure
Assembly is not portable across ARM Cortex-M, RISC-V, AVR, and Xtensa. A routine written for the Xtensa LX7 will not move to an STM32 or RP2040 without a full rewrite.
The engineering cost, defect surface, and maintenance burden almost always exceed the performance gain. The r/embedded consensus is clear: assembly is only justified for small, hot loops with known, fixed timing constraints.
2. The Core Gear Architecture
2.1 Primary Affiliate Target: Freenove Ultimate Starter Kit for ESP32-S3
The Freenove Ultimate Starter Kit for ESP32-S3 is the deterministic 2026 benchmark platform. It gives you a single kit with the dev board, solderless breadboard, jumper wires, passive components, LEDs, buttons, sensors, OLED display, servo, motor driver, and a .pdf tutorial.
That matters because hardware ambiguity kills benchmarks. When your bench, wiring, and peripherals all come from one validated kit, you remove the “is it the board or the code?” question.
2.2 MCU Core: ESP32-S3-WROOM-1 Exact Specifications

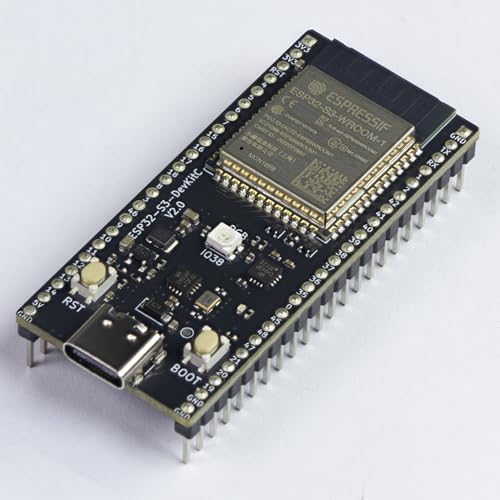

The kit is built around the ESP32-S3-WROOM-1 module:
| Parameter | Specification |
|---|---|
| CPU | Xtensa LX7 dual-core, up to 240 MHz |
| Memory | 512 KB SRAM, 384 KB ROM; module-dependent external PSRAM up to 8 MB |
| Wireless | 2.4 GHz 802.11 b/g/n Wi-Fi, Bluetooth 5 (LE) |
| I/O | 45 GPIO, USB OTG, LCD interface, camera interface, 4 × SPI, 2 × I2C, 2 × I2S, 3 × UART |
| Power | 3.3 V logic, recommended 5 V supply via USB-C or external regulator |
These specs matter because the 240 MHz clock, dual-core layout, and 512 KB SRAM define the timing envelope you are measuring inside. You cannot benchmark what you do not know.
2.3 Language & Toolchain Support
The ESP32-S3-WROOM-1 supports:
| Environment | Details |
|---|---|
| MicroPython | High-level scripting |
| Arduino C/C++ | Arduino-ESP32 core |
| ESP-IDF 5.x | CMake + GCC Xtensa toolchain |
| Rust | esp-rs ecosystem |
For a valid C vs. assembly benchmark, use ESP-IDF 5.x. It gives you direct access to the GCC Xtensa toolchain, the hardware timer, and the linker options you need for fair comparison.
2.4 2026 Freshness Factors
This platform stays current in 2026 because of the ESP-IDF 5.x toolchain, USB-C debug interface, external PSRAM variants up to 8 MB, and the continued relevance of the dual-core Xtensa architecture for deterministic benchmarking tutorials.
3. The Technical Setup Blueprint
3.1 Environment Zoning & Baseline Lockdown
Before you measure anything, lock the environment:
| Action | Purpose |
|---|---|
| Lock CPU frequency to 240 MHz | Disable dynamic frequency scaling (DFS) |
| Disable interrupts | During measured region, or account for ISR variance |
| Isolate benchmark task/core | Prevent FreeRTOS task-switching noise |
| Disable Wi-Fi/Bluetooth | Remove stack jitter |
This is the difference between a measurement and a guess.
Recommended Insights From Our Guide Library:
- C vs. Assembly: When Hand-Tuning Beats the Compiler for Peak Performance
- Mastering Inline Assembly: Boost C Code Speed in Embedded Systems with RISC-V Assembly » Z A D A
- IoT Device Optimization: Why C and Assembly Still Reign Supreme in 2026 » Z A D A
- The Enduring Legacy of Assembly Language in Modern Technology
- C and Assembly for Blazing-Fast Machine Learning
3.2 Accurate Benchmarking Procedure
Use this protocol for every test:
| Step | Implementation |
|---|---|
| Timebase | Use 64-bit hardware timer (`timer_group`) as sole timebase |
| Volatile | Declare test inputs/outputs as `volatile` to prevent dead-code elimination |
| Warmup | Warm caches and repeat the test loop |
| Reporting | Report median, minimum, and maximum cycle counts—not a single run |
This is the Stack Overflow answer that keeps coming up for a reason: it works.
3.3 Compiler Flag Matrix for Fair Comparison
Run your C baseline through the full matrix:
| Flag | Description |
|---|---|
| -O0 | No optimization, baseline only |
| -O2 | Balanced optimization |
| -O3 | Aggressive optimization |
| -Os | Optimize for size |
| -flto | Link-time optimization |
| -ffunction-sections -fdata-sections | With `-Wl,–gc-sections` for dead-code removal |
If your hand-written assembly only beats `-O0`, you have not proven anything. You need to beat `-O3 -flto`.
3.4 Assembly Integration Protocol
When you do write assembly, follow the Xtensa ISA inline assembly path through GCC extended `asm`:
Provide proper clobber lists and input/output constraints to avoid register corruption. Stay aware of branch, load-use, and pipeline-stall behavior for hand-tuned loops.
One missing clobber can silently corrupt your benchmark or crash your dev board.
3.5 Benchmark Subjects to Test
Pick workloads that actually stress the language boundary:
| Workload | Relevance |
|---|---|
| GPIO bit-banging | High I/O frequency stress |
| CRC/checksum calculation | Arithmetic intensity |
| Fixed-point arithmetic loops | Math pipeline usage |
| Bit manipulation routines | Instruction density |
| Interrupt latency | Context switch overhead |
These are the domains where assembly might win, and where compiler optimization usually surprises beginners.
3.6 Verification Layer: Logic Analyzer / Oscilloscope
Software timers alone are not enough. Cross-check your median cycle counts against physical timing with a logic analyzer or oscilloscope.
Pay attention to probe grounding and bandwidth, especially for GPIO toggle benchmarks. A USB Logic Analyzer 24MHz 8 Channel is fine for many ESP32-S3 signals, but know your edge rates.
4. Field Verdict & Operational ROI
4.1 When Assembly Actually Wins
Assembly is justified for small, hot loops with known, fixed timing constraints. If you have a hand-optimized Xtensa inner loop where the compiler cannot exploit a specific instruction, you can win.
But the win is narrow, and the cost is high.
4.2 When Modern GCC Wins
The r/embedded consensus is clear: `-O2` / `-O3` / LTO usually beats hand-written assembly. When you benchmark Arduino `digitalWrite()` or `analogRead()`, you are measuring framework overhead, not the language.
The language is not slow. The abstraction layer is.
4.3 The Cost of Bad Benchmarking Methodology
Bad methodology wastes engineering hours, creates portability defects when moving from Xtensa to ARM/RISC-V/AVR, and expands the maintenance burden and defect surface of non-portable assembly.
A wrong answer here costs far more than the time it took to write the test.
4.4 Recommended Investment
The Freenove Ultimate Starter Kit for ESP32-S3 is the deterministic 2026 benchmark platform. Pair it with ESP-IDF 5.x, the GCC Xtensa toolchain, and the 64-bit hardware timer. That combination is the only setup that can settle “is assembly faster than C?” without methodological fraud.
Conclusion
The question “is assembly faster than C for embedded systems microcontrollers benchmark” has only one honest answer: **it depends on your measurement method, and most methods are wrong.**
Community Reference & Authority Resources:
On the ESP32-S3-WROOM-1 with its Xtensa LX7 dual-core at 240 MHz, modern GCC at `-O3 -flto` usually beats hand-written assembly unless the assembly is confined to a tiny, hot, timing-critical loop. The real enemy is not the language. It is invalid timers, ignored compiler optimizations, environmental noise, and unportable code.
By locking the CPU frequency, using the 64-bit `timer_group`, running the full compiler flag matrix, and verifying with a USB Logic Analyzer 24MHz 8 Channel, you turn a religious debate into an engineering measurement. The Freenove Ultimate Starter Kit for ESP32-S3 gives you the clean hardware foundation to do exactly that. Stop benchmarking the framework, start benchmarking the code, and let the cycle counts speak for themselves.
